Comply with strict quality and safety standards

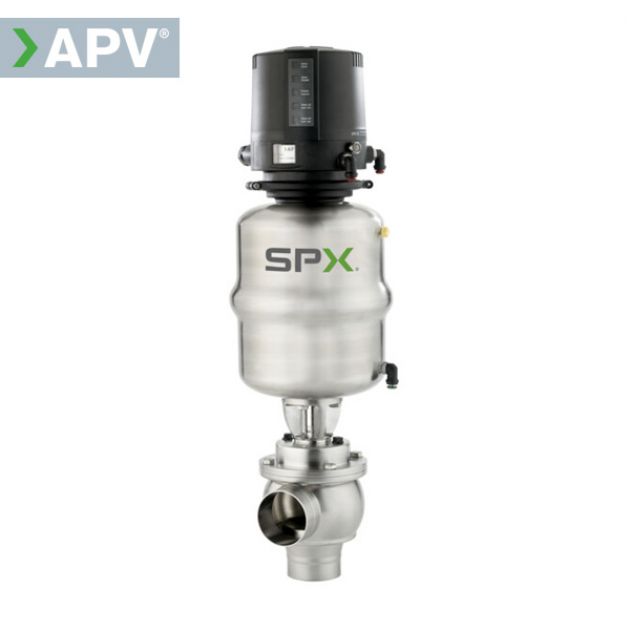

APV MS4/MSP4 Membrane Valves
These valves are designed for aseptic processing systems, for example cold aseptic filling systems in the food & beverage industries, product handling downstream to UHT plants in the dairy industry or for pharmaceutical applications.
Brief characteristics
- Type: sanitary, membrane, with pneumatic drive
- Types: shut-off (overlapping), regulating flow, outlet pipes of the tank
- Dimensions: ISO 1" - 4" external. Ø pipes, DIN DN25-100
- Connecting parts: Butt welding end (S), clips ISO-Clamp / Tri-Clamp (CL)
- Surface treatment: internal polishing to Ra < 0.8 µl
The lineup: MS4: MS41 (L), MS42 (T), MSE41 (KLL), MSES45 (LLS), MST42 (T). MSP4: MSP41 (L), MSP42 (T), MSPT42 (T).
Advantages
- Seal is a flexible flat membrane with fan support system.
- Membrane material is single-layer PTFE TFM 1705 (FDA, USP Class VI), chemically inert material.
- Body bolt gaskets with metal limiter prevent seal from being over squeezed.
- Suitable for all kind of media used in food and pharmaceutical industries
- 3A and EHEDG approved
