Sale of high pressure homogenizer FBF, capacity from 7500 to 26000 l/h

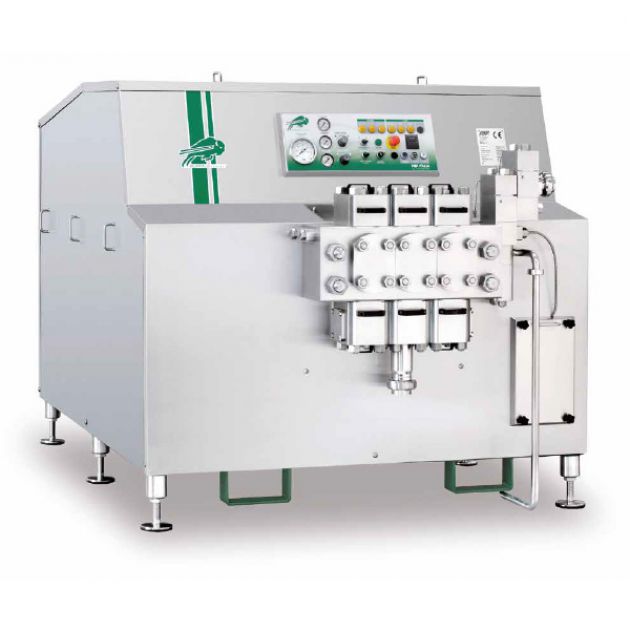

FBF Italia 9090-9160 Homogenizer

FBF homogenizer with a capacity of up to 26,000 liters /hour, differing from competitors in quality and reliability. These are modern models with a high coefficient of continuous operation. Suitable for dairy plants of high production capacity.

Model characteristics:

Operating pressure from 100 to 600 bar

Capacity from 7500 to 26000 l/hour

Power from 90 to 160 kW

No vibration at high loads

The lineup: FBF 9090, FBF 9110, FBF 9132, FBF 9160

Main features

Quality and safety certificate

Homogenizers have a "3-A Sanitary Standards" certificate confirming the high sanitary standards requirements for dairy processing equipment.

The equipment is manufactured in accordance with Directive 2006/42/CE and complies with all necessary standards and quality standards adopted in the territory of the Russian Federation, the European Union and the USA.

Stable operation

Diamond Like Coating pumping plungers.
Compression head manufactured as a single block, of SAF (Duplex) 2205 forged steel.
Semi-automatic belt tension system from motor to gearbox.
Seat valves of interchangeable type, designed for use on both sides.
Premium segment energy-efficient four-pole electric motors.
The gearbox-crankshaft connection is a mono block structure, that reduces unbalancing and vibrations.
Homogenization pressure is controlled by hydro pneumatic unit.
Separate access to each node, which greatly simplifies servicing.

Technical parameters

Model	Motor, kW	Pump plungers, quantity	Cooling water, l/h	Dimensions, WxDxH, cm	Approximate weight, kg
FBF 9090	90	3	150-180	190х260х180	5150-5500
FBF 9110	110
FBF 9132	132
FBF 9160	160

Capacity

Working pressure, bar	100	130	150	180	200	230	250	300
From l/h	26000		25000	21000	19000	17000	16000	13000
Up to l/h	40000	39000	33000	27000	25000	22000	20000	16000

Additional features

Aseptic version. Using a barrier of sterile condensate produced by a special built-in device
Abrasive version. Used for production of products containing high percentage of dry residue, which is harmful to plungers.
Automatic protection. Made of stainless steel for power supply of the homogenizer cabinet.
Control cabinet. To stabilize the conducted product flow by reducing the vibrations of the supply and discharge pipes.
The second stage of homogenization. Decreases tendency of globules sticking together or forming large agglomerates.
Remote control of homogenization pressure of the 1st and 2nd stages of homogenization.
