Buy industrial homogenizer FBF with capacity from 4000 to 16000 liters/hour

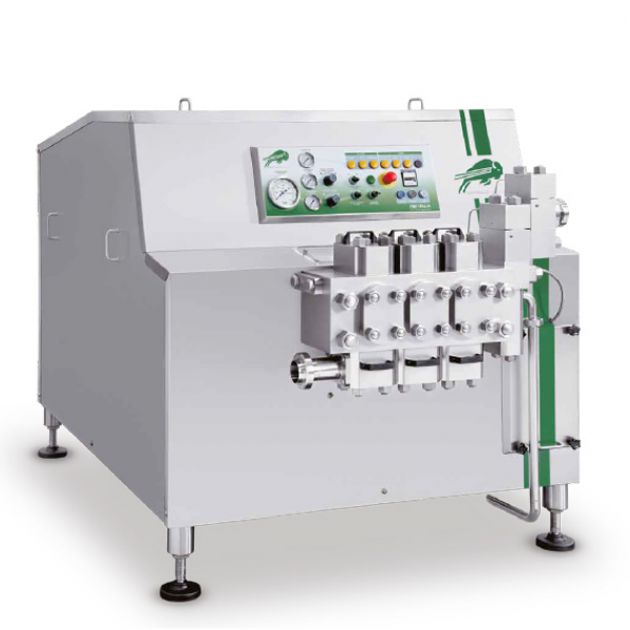

FBF Italia 8075-8132 Homogenizers

These FBF Buffalo homogenizer models with capacity of up to 16,000 liters / hour are used at dairy market large processing plants, such as: Korenovsky Dairy Canning plant, LebedyanMoloko, Ozeretsky dairy plant.

Characteristics briefly:

Operating pressure from 100 to 600 bar

Capacity from 4000 to 16000 liters/hour

Power from 85 to 132 kW

Energy-efficient four-pole electric motor

The lineup: FBF 8075, FBF 8090, FBF 8110, FBF 8132

The equipment is suitable for

Dairy and fermented dairy products
Syrups and cream for ice cream
Ketchup, mayonnaise and melange
Fruit and tomato juices, nectars
Cosmetic, chemical industry

Distinctive features

Quality and safety certificate

Homogenizers have a "3-A Sanitary Standards" certificate confirming the high sanitary standards requirements for dairy processing equipment.

The equipment is manufactured in accordance with Directive 2006/42/CE and complies with all necessary standards and quality standards adopted in the territory of the Russian Federation, the European Union and the USA.

Withstands high loads

The pump body is made of high-strength cast iron with thickened walls to withstand high loads and reduce vibrations during operation.

Diamond Like Coating pumping plungers

Diamond-like coating provides plungers with strength and wear resistance. This gives them the hardness of diamond, significantly reduces the friction coefficient and makes them less prone to wear during temperature fluctuations.

Technical parameters

Model	Motor, kW	Pump plungers, quantity	Cooling water, l/h	Dimensions, WxDxH, cm	Approximate weight, kg
FBF 8075	75	3	90-120	180х220х160	3230-3500
FBF 8090	90
FBF 8110	110
FBF 8132	132

Capacity

Working pressure, bar	100	130	150	180	200	230	250	300
From l/h	16500		16000	12500		10500	10000	8500
Up to l/h	25000		24000	20000	18000	16500	15000	12000

Additional features

Abrasive version. Used for production of products containing high percentage of dry residue (milk powder, ice cream, chocolate, fruit, ketchup, sauces and seasonings, etc.), which are harmful to plungers. Due to the use of special high-strength materials, wear resistance of the plungers is being increased
Automatic protection. For power supply of the homogenizer cabinet. Made of stainless steel. It can be placed on the top or separately from the equipment. Ensures the safety of equipment in case of power surges.
The second stage of homogenization. Decreases tendency of globules sticking together or forming large agglomerates.
Aseptic version. Using a barrier of sterile condensate produced by a special built-in device
Control cabinet. Provides flow control at the inlet/outlet, stabilization of the conducted product flow by reducing vibrations of the supply / discharge pipe.
Remote control of homogenization pressure of the 1st and 2nd stages of homogenization. Ensures prompt troubleshooting possibility.

Leave a request for selection of equipment and price list
