Buy industrial homogenizer FBF Italia 7045-7090 with a capacity of 3500 to 16000 liters per hour

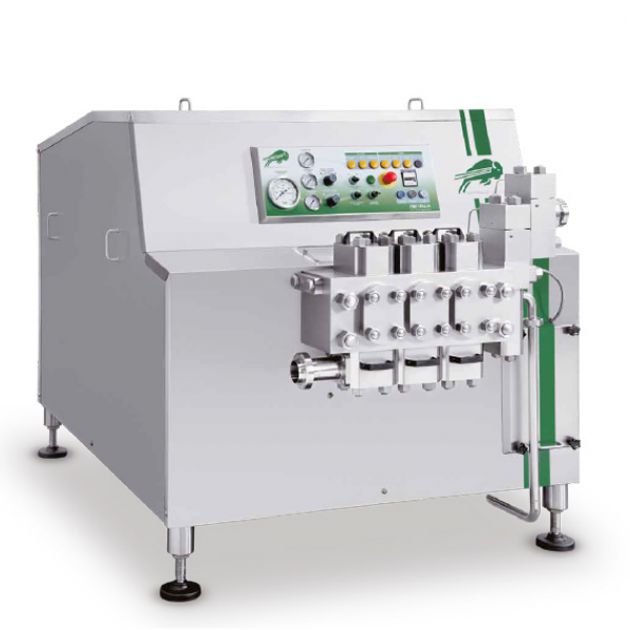

FBF 7045-7090 Homogenizers

FBF Italia "Buffalo Series" are productive high-pressure homogenizers. Wide range of settings ensure easy integration into any production line. They are equipped with a powerful and durable motor that ensures stable product quality.

Brief characteristics:

Capacity from 3500 to 16000 l/hour

Operating pressure from 100 to 600 bar

Power from 45 to 90 kW

Compression head formed by single block in forged stainless steel of SAF (Duplex) 2205 type

The lineup: FBF 7045, FBF 7055, FBF 7075, FBF 7090

The equipment is suitable for

Dairy and fermented dairy products
Ketchup, mayonnaise, melange and other viscous products
Fruit juices, nectars and concentrates
Cosmetic, chemical industry

Distinctive features

Quality and safety certificate

Homogenizers have a "3-A Sanitary Standards" certificate confirming the high sanitary standards requirements for dairy processing equipment.

The equipment is manufactured in accordance with Directive 2006/42/CE and complies with all necessary standards and quality standards adopted in the territory of the Russian Federation, the European Union and the USA.

High coefficient of continuous operation

Achieved due to more reliable components and assemblies and use of innovative materials, which extend service intervals. Convenient access to all parts and assemblies creates conditions for prompt service and maintenance of devices.

Technical parameters

Model	Motor, kW	Pump plungers, quantity	Cooling water, l/h	Dimensions, WxDxH, cm	Approximate weight, kg
FBF 7045	45	3	90-120	150х210х150	2410-2550
FBF 7055	55
FBF 7075	75
FBF 7090	90

Capacity

Working pressure, bar	100	130	150	180	200	230	250	300
From l/h	12000	10500	9500	8000	7500	6200	5800	5000
Up to l/h	16000		15500	12000		10000	9500	8000

Confirmed quality and performance

These models are already used at the following production facilities: Alekseevsky Dairy Plant, Privolzhsky Dairy Plant, Hipp Baby Food, Avida Dairy Plant, Korenovsky Milk Cannery, Kirovsky Dairy Plant.

Additional features

Abrasive version.
Used for production of products containing high percentage of dry residue (milk powder, ice cream, chocolate, fruit, ketchup, sauces and seasonings, etc.), which are harmful to plungers. Due to the use of special high-strength materials, wear resistance of the plungers is being increased.
Automatic protection.
For power supply of the homogenizer cabinet. Made of stainless steel. It can be placed on the top or separately from the equipment. Ensures the safety of equipment in case of power surges.
The second stage of homogenization
Decreases tendency of globules sticking together or forming large agglomerates.
Control cabinet.
Provides flow control at the inlet/outlet, stabilization of the conducted product flow by reducing vibrations of the supply / discharge pipe.
Remote control of the pressure of the 1st stage of homogenization.
Installed on the machine panel (with the standard version of the pneumatic system) or by means of a special electromechanical pressure gauge being controlled with help of PLC, provides the possibility of prompt elimination of possible malfunctions.
Remote control of homogenization pressure of the 1st and 2nd stages of homogenization.
A similar device is applicable to both stages of homogenization; delivery includes installation of 2 electromechanical pressure gauges with a power of 4-20 mA at the output, 2 control valves, 2 programmable displays, remote control, flange for mounting the pressure gauge of the 2nd stage of homogenization. All models are equipped with a hydropneumatic pressure control system that ensures stability of indicators and quality of the final product.
Aseptic version.
Using a barrier of sterile condensate produced by a special built-in device.

Leave a request for selection of equipment and price list
