FBF Italia 0160-0250 Homogenizers

The most powerful homogenizers of the FBF Italia model range — up to 60,000 liters/hour. Series high performance is achieved due to the compression head fitted with five plungers.

Characteristics briefly:

  • Complies with the CE directive
  • Capacity from 12,000 to 60,000 liters/hour
  • Operating pressure from 100 to 600 bar
  • Power from 160 to 250 kW

The lineup: FBF 0160, FBF 0200, FBF 0250

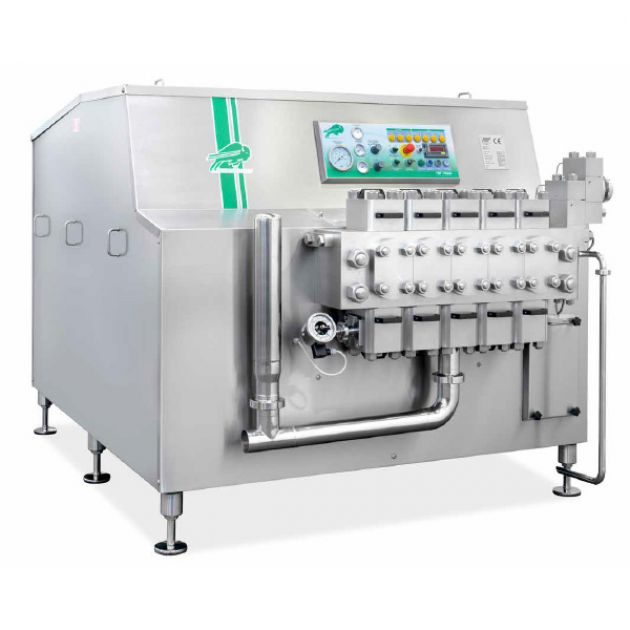

Plunger homogenizer FBF 0250

The equipment is suitable for

  • Creams and toothpaste

    Creams and toothpaste

  • Ice cream and syrups

    Ice cream and syrups

  • Fruit and tomato juices

    Fruit and tomato juices

  • Mayonnaise and sauces

    Mayonnaise and sauces

  • Dairy products

    Dairy products

Main features

Quality and safety certificate

Homogenizers have a "3-A Sanitary Standards" certificate confirming the high sanitary standards requirements for dairy processing equipment.

The equipment is manufactured in accordance with Directive 2006/42/CE and complies with all necessary standards and quality standards adopted in the territory of the Russian Federation, the European Union and the USA.

Stable operation

  1. Compression head manufactured as a single block, of SAF (Duplex) 2205 forged steel.
  2. Semi-automatic belt tension system from motor to gearbox.
  3. Diamond Like Coating pumping plungers
  4. Homogenization pressure is controlled by hydro pneumatic unit.
  5. Seat valves of interchangeable type, designed for use on both sides.
  6. Premium segment energy-efficient four-pole electric motors.
  7. Separate access to each node, which greatly simplifies servicing.

Technical parameters

Model Motor, kW Motor, kW Cooling water, l/h Dimensions, WxDxH, cm Approximate weight, kg
FBF 0160 160 5 180-240 200х260х180 6870-7300
FBF 0200 200
FBF 0250 250

Capacity

Working pressure, bar 100 130 150 180 200 230 250 300
From l/h 42000 40000 34000 28000 26000 24000 22000 18000
Up to l/h 66000 62000 54000 45000 40000 35000 32000 27000

Additional features

  • Aseptic version. Using a barrier of sterile condensate produced by a special built-in device
  • Abrasive version. Used for production of products containing high percentage of dry residue, which is harmful to plungers.
  • Automatic protection. Made of stainless steel for power supply of the homogenizer cabinet.
  • Control cabinet. To stabilize the conducted product flow by reducing the vibrations of the supply and discharge pipes.
  • The second stage of homogenization. Decreases tendency of globules sticking together or forming large agglomerates.
  • Remote control of homogenization pressure of the 1st and 2nd stages of homogenization.
