The equipment is suitable for
-
Fruit concentrates and juice
-
For the production of whole and condensed milk
-
Face care creams, perfumes

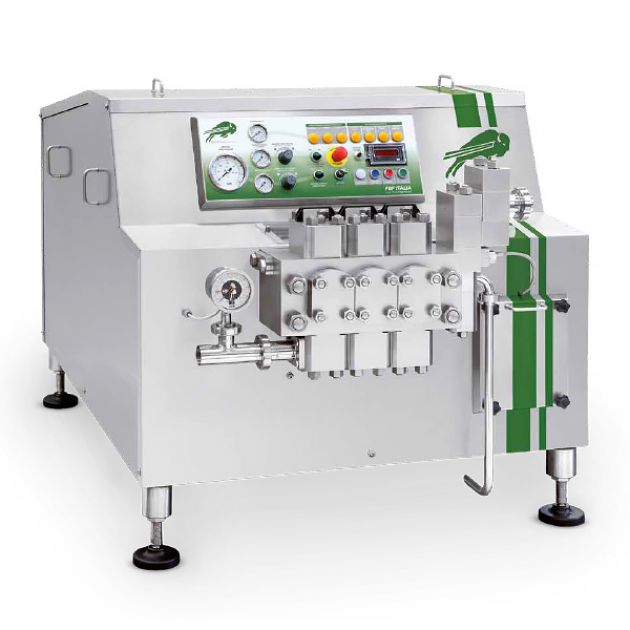

FBF 5018-5030 Homogenizers
We supply FBF "Buffalo Series" industrial food homogenizers of Italian production. Models are equipped with powerful, durable motor, which provides consistent product quality.
Brief information:
- Capacity from 800 to 6,000 liters/hour
- Electric power from 18.5 to 30 kW
- Complies with the CE Directive
- Diamond-like spraying ensures the strength and wear resistance of the plungers
The lineup: FBF 5018, FBF 5022, FBF 5030
Main advantages
Quality and safety certificate
Homogenizers have a "3-A Sanitary Standards" certificate confirming the high sanitary standards requirements for dairy processing equipment.
The equipment is manufactured in accordance with Directive 2006/42/CE and complies with all necessary standards and quality standards adopted in the territory of the Russian Federation, the European Union and the USA.
Extra durability
The valve groups are made of special stainless steel "AISI 316" that is highly resistant to corrosion, high temperatures and aggressive environment.
Technical parameters
| Model | Motor, kW | Pump plungers, quantity | Cooling water, l/h | Dimensions, WxDxH, cm | Approximate weight, kg |
| FBF 5018 | 18,5 | 3 | 90-120 | 120х155х130 | 1200-1270 |
| FBF 5022 | 20 | ||||
| FBF 5030 | 30 |
Capacity
| Working pressure, bar | 130 | 150 | 180 | 200 | 230 | 250 | 300 |
| From l/h | 4700 | 4200 | 3700 | 3200 | 2700 | 2200 | |
| Up to l/h | 6000 | 5000 | 4500 | 4000 | 3500 | 3000 | |
Reliability
The quality of the equipment is confirmed by the successful use of our customers at the production facilities, including: Korenovskiy Dairy and Canning Plant, Suzdal Dairy Plant, JSC "Educational and Experimental Dairy Plant" VGMCA named after N.V. Vereshchagin", Alapaevskiy Dairy Plant, Kasymovskiy Dairy Plant.
Additional features
- Second stage of homogenization of auxiliary type (oil-pneumatic unit).
- Digital pressure sensors and similar pressure gauges with an output signal of 4-20 mA.
- Fixed capacity - electric panel inside the equipment.
- Adjustable capacity. Stainless steel electrical panel located outside or on top of the equipment.
- Aseptic version using a barrier of sterile condensate produced by a special built-in device.
- Pulse compensators at the product inlet and outlet, also characteristic of aseptic production.
- Electro-contact pressure gauge controlling the product feed pressure with possibility to program the timing of switching off and on of the homogenization valves.
- Semi-automatic, automatic homogenization pressure control.
Leave a request for the selection of equipment and a price list
