The equipment is suitable for
-
Production of dairy products
-
Fruit juices, nectars and concentrates
-
Cosmetic and chemical industry

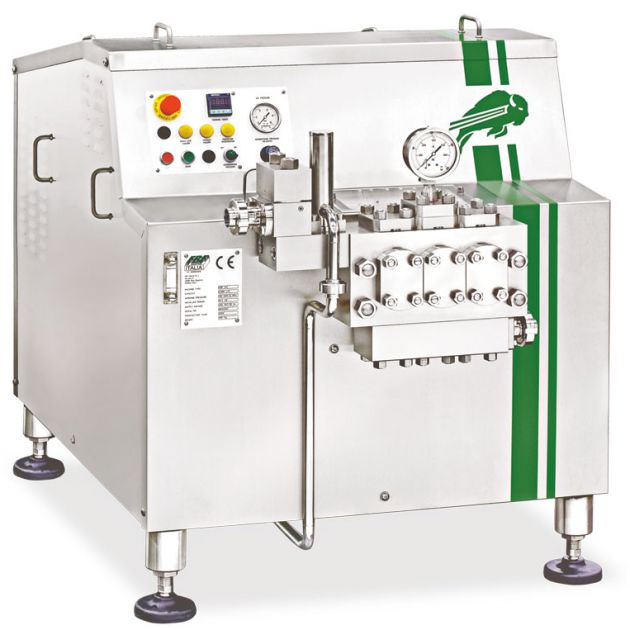

FBF Italia 4011-4022 Homogenizers
The FBF Italia Buffalo series plunger homogenizer is a powerful technological monster, yet quiet and silent in operation, since its body is made of high—strength cast iron with thickened walls.
Advantages of models:
- Capacity from 500 to 6000 liters/hour
- Operating pressure from 100 to 600 bar
- Electric power from 11 to 22 kW
- Diamond-like coating ensures the strength and wear resistance of the plungers
- Suitable for "small" and "medium" production
The lineup: FBF 4011, FBF 4015, FBF 4018, FBF 4022
Key features
Quality and safety certificate
All models have a "3-A Sanitary Standards" certificate confirming the high sanitary standards requirements for dairy processing equipment.
The equipment is manufactured in accordance with Directive 2006/42/CE and complies with all necessary standards and quality standards adopted in the territory of the Russian Federation, the European Union and the USA.
Runs 40% longer
Homogenizer models are equipped with advanced pistons and bearings, which are capable of uninterrupted operation for 40% longer.
Technical parameters
| Model | Motor, kW | Pump plungers, quantity | Cooling water, l/h | Dimensions, WxDxH, cm | Approximate weight, kg |
| FBF 4011 | 11 | 3 | 100 | 115х140х120 | 800-850 |
| FBF 4015 | 15 | ||||
| FBF 4018 | 18,5 | ||||
| FBF 4022 | 22 |
Capacity
| Working pressure, bar | 100 | 130 | 150 | 180 | 200 | 230 | 250 | 300 |
| From l/h | 2200 | 1800 | 1700 | 1300 | 1100 | |||
| Up to l/h | 6000 | 4500 | 4000 | 3500 | 3000 | 2500 | 2000 | |
We are trusted
Our equipment is used at the following enterprises: GK "EFKO", TPK "Arshani", "Milk Traditions", "Dairy Factory Volga", "Mytishchi Milk Plant".
Additional features to choose from
- Abrasive version.
Used for production of products containing high percentage of dry residue. - Automatic protection.
For power supply of the homogenizer cabinet. Made of stainless steel. Ensures the safety of equipment in case of power surges. - The second stage of homogenization.
Decreases tendency of globules sticking together or forming large agglomerates. - Control cabinet.
Provides flow control at the inlet/outlet, stabilization of the conducted product flow by reducing vibrations of the supply / discharge pipe. - Remote control of the pressure of the 1st stage of homogenization.
Installed on the machine panel or by means of a special electromechanical pressure gauge being controlled with help of PLC, provides the possibility of prompt elimination of possible malfunctions. - Remote control of homogenization pressure of the 1st and 2nd stages of homogenization.
A similar device is applicable to both stages of homogenization. - Aseptic version.
Using a barrier of sterile condensate produced by a special built-in device.
Leave a request for selection of equipment and price list
